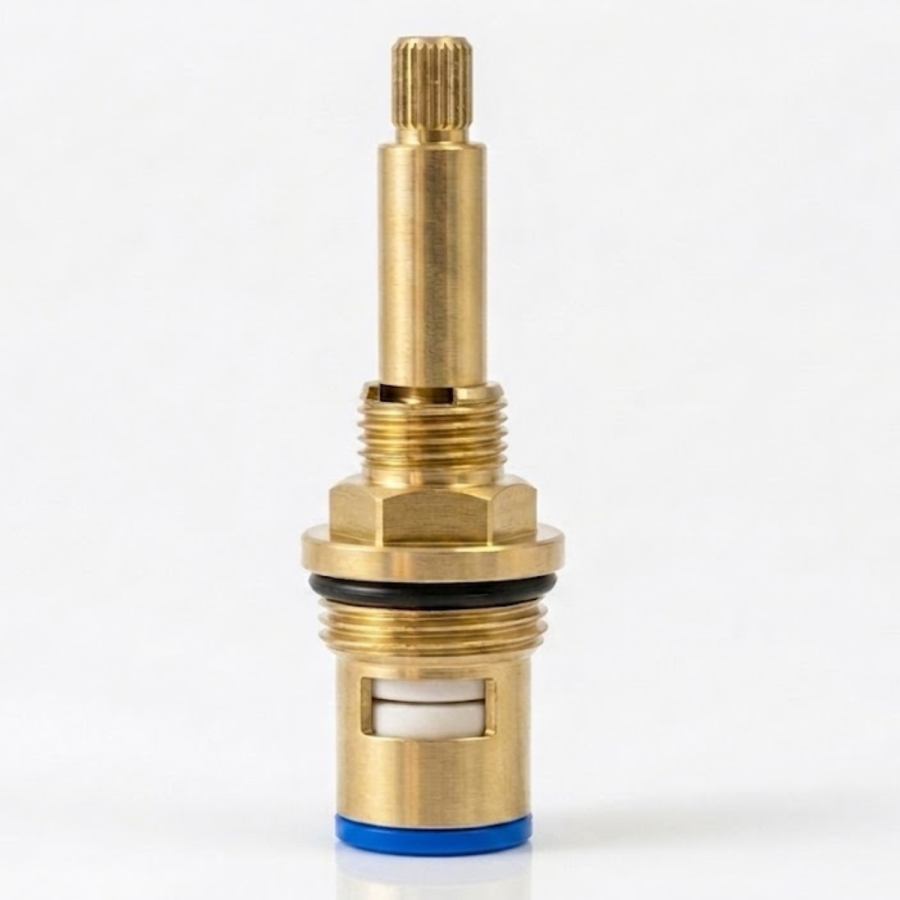

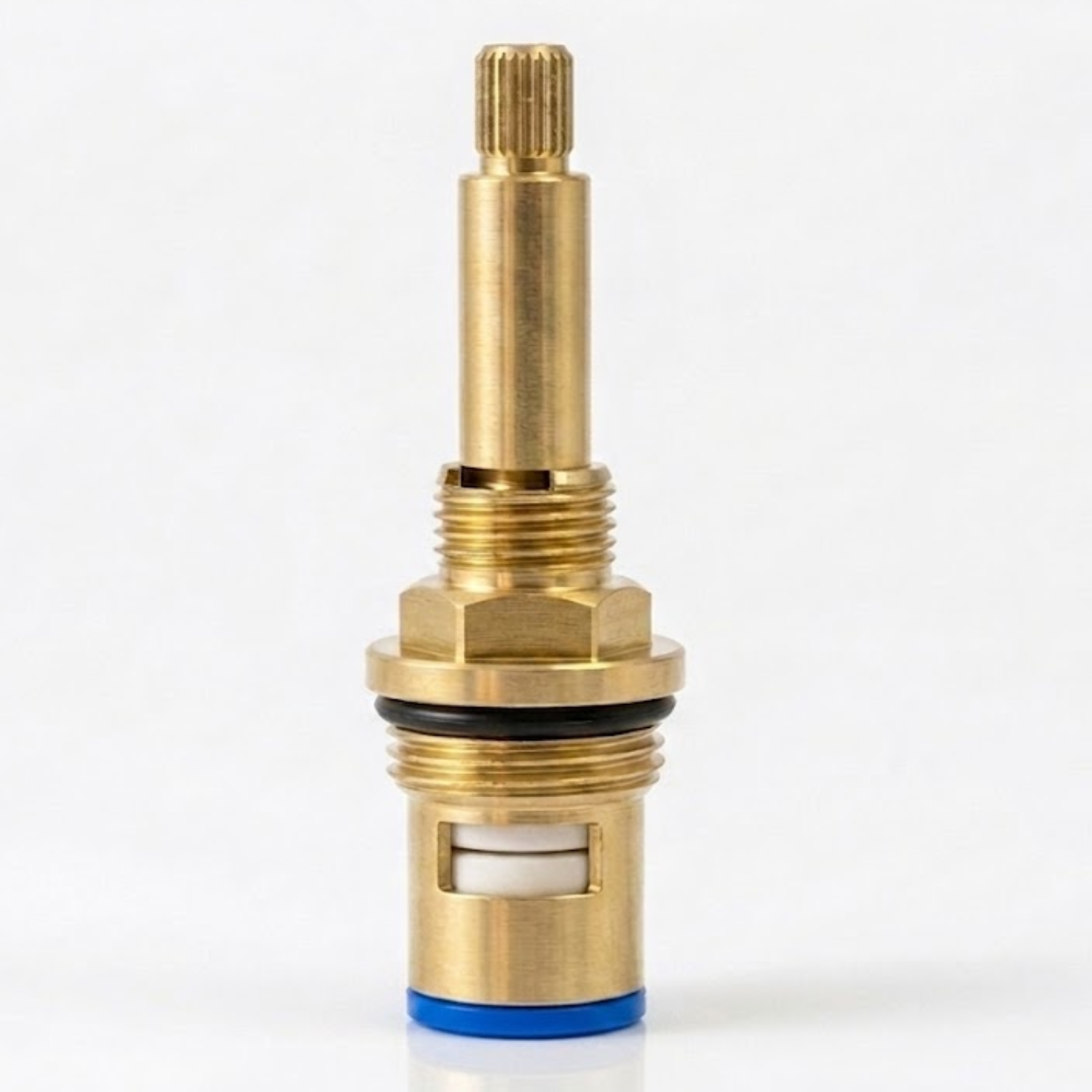

Cold Flow control valve to Suit Camden
Compatible with: BeBa_25960, BeBa_25961, BeBa_25962, BeBa_25964, BeBa_25965, BeBa_25966, BeBa_25967, BeBa_25969, BeBa_25970, BeBa_25971, BeBa_25972, BeBa_25974
Always check the spare part size to ensure it fits your product.
Need to know

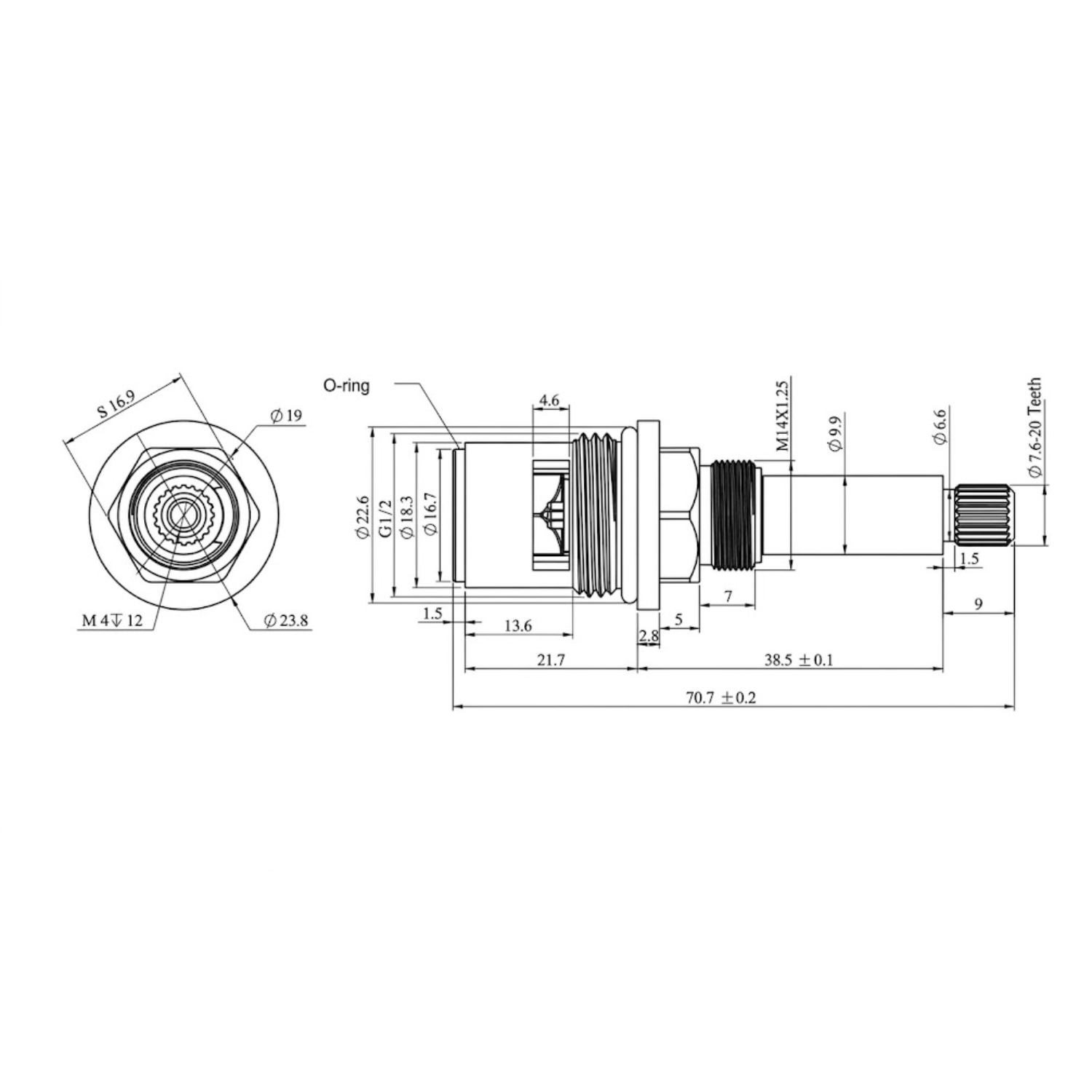

- Overall length: 70.7 ± 0.2 mm
- Main body diameter: Ø22.6 mm
- Inner diameters: Ø18.3 mm and Ø16.7 mm
- Threaded section: M14 × 1.25
- Threaded section length: 9.9 mm
- O-ring groove width: 4.6 mm
- Front section (hex nut): S16.9 mm flat-to-flat, Ø23.8 mm outer diameter
- Shaft section diameters: Ø6.6 mm and Ø7.65 (with 20 teeth)
- Spline section length: 9 mm
- Front mounting hole: M4 × 12
- Opening angle: 90°
